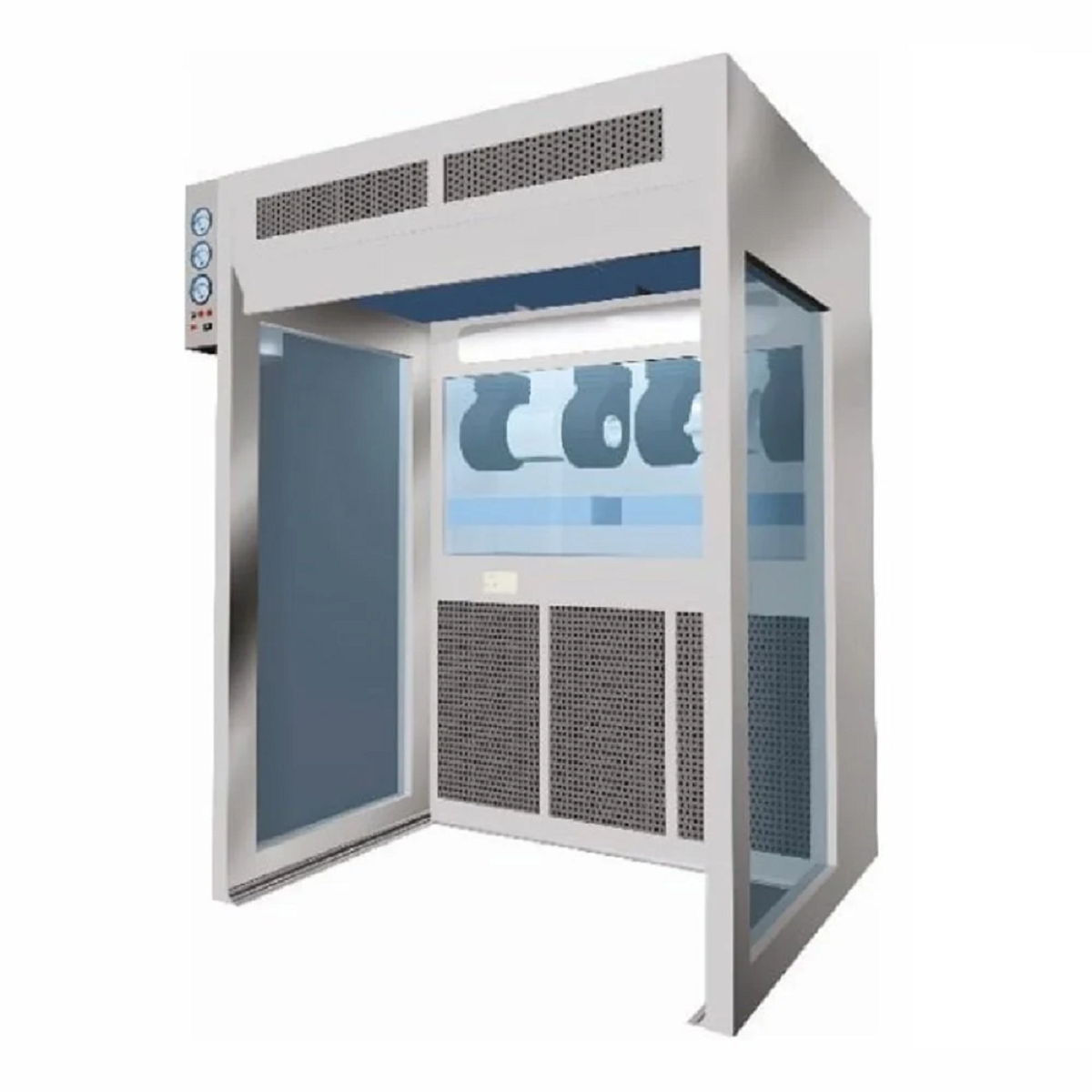

Reverse Laminar Air Flow Units
| Specification | Details |
|---|
| Product Name | Reverse Laminar Air Flow Unit |
| Product Type | Powder Containment and Extraction System |
| Construction | Stainless Steel / Powder-Coated GI |
| Airflow Pattern | Reverse / Inward Unidirectional Airflow |
| Filter System | Pre-filter, Fine Filter and HEPA Filter |
| HEPA Efficiency | Up to 99.97% at 0.3 micron |
| Air Velocity | Approximately 0.3–0.5 m/s |
| Blower Type | Centrifugal / Plug Fan |
| Pressure Control | Negative Pressure Operation |
| Control System | Manual / Digital / PLC Based |
Reverse Laminar Air Flow Units are specialised containment systems designed to protect operators and the surrounding environment from airborne dust, powders and hazardous particles generated during material handling processes. Unlike standard laminar airflow systems, these units draw contaminated air away from the operator and pass it through high-efficiency filtration stages before releasing clean air back into the room.
The controlled inward airflow helps prevent cross-contamination and reduces operator exposure during activities such as dispensing, sampling, weighing, charging and powder transfer. Reverse Laminar Air Flow Units are commonly used in pharmaceutical plants, chemical facilities, laboratories, biotechnology units and cleanroom applications.
MAECENAS IACULIS
Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.
ADIPISCING CONVALLIS BULUM
- Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
- Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
- Diam parturient dictumst parturient scelerisque nibh lectus.
Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.
Related products
Air Handling Units (AHU)
| Specification | Details |
|---|
| Product Name | Air Handling Unit |
| Product Type | Modular / Double-Skin AHU |
| Application | Air filtration, cooling, heating and ventilation |
| Construction | Pre-painted GI / Aluminium / Stainless Steel |
| Panel Type | Double-skin insulated panels |
| Insulation | PUF / Rockwool insulation |
| Fan Type | Centrifugal / Plug Fan / EC Fan |
| Filter Options | Pre-filter, Fine Filter, HEPA Filter |
| Cooling Medium | Chilled Water / DX Cooling |
| Airflow Capacity | Customised as per requirement |
Cleanroom Doors
| Specification | Details |
|---|
| Product Name | Cleanroom Door |
| Product Type | Single-Leaf / Double-Leaf / Sliding Door |
| Door Construction | Flush and Airtight |
| Surface Material | Stainless Steel / Pre-Painted GI / Powder-Coated GI |
| Core Material | PUF / PIR / Paper Honeycomb / Rockwool |
| Door Thickness | 40 mm / 50 mm / Customised |
| Frame Material | Stainless Steel / Powder-Coated GI / Aluminium |
| Vision Panel | Double-Glazed Flush Glass, Optional |
| Door Interlocking | Mechanical / Electromagnetic, Optional |
| Door Closer | Hydraulic / Automatic |
| Sealing | EPDM / Silicone Airtight Gasket |
Cleanroom Partitions
| Specification | Details |
|---|
| Product Name | Cleanroom Partition |
| Product Type | Modular Insulated Wall Panel |
| Panel Construction | Single-Skin / Double-Skin |
| Surface Material | Pre-Painted GI / Stainless Steel / Aluminium |
| Core Material | PUF / PIR / Rockwool / Paper Honeycomb |
| Panel Thickness | 50 mm / 75 mm / 100 mm or customised |
| Surface Finish | Smooth, Flush and Easy to Clean |
| Joint Type | Tongue-and-Groove / Cam-Lock Joint |
| Fire Resistance | Available with fire-rated core options |
| Thermal Insulation | High thermal and acoustic insulation |
Laminar Air Flow Units
| Specification | Details |
|---|
| Product Name | Treated Fresh Air Unit |
| Abbreviation | TFA Unit |
| Product Type | Fresh Air Treatment and Ventilation Unit |
| Construction | Pre-painted GI / Aluminium / Stainless Steel |
| Panel Type | Double-skin insulated panels |
| Insulation | PUF / Rockwool insulation |
| Fan Type | Centrifugal Fan / Plug Fan / EC Fan |
| Filter Options | Pre-filter, Fine Filter and HEPA Filter |
| Cooling Medium | Chilled Water / DX Cooling |
| Heating Option | Electric / Hot Water / Steam Coil |
| Airflow Capacity | Customised as per project requirement |
Pass box ( Dynamic)
| pecification | Details |
|---|
| Product Name | Dynamic Pass Box |
| Product Type | Active Air-Filtered Material Transfer Chamber |
| Construction | Stainless Steel / Powder-Coated GI |
| Inner Chamber Material | SS 304 / SS 316 |
| Door Type | Double Door |
| Door Interlocking | Electromagnetic Interlocking |
| Filtration System | Pre-Filter and HEPA Filter |
| HEPA Efficiency | Up to 99.97% at 0.3 Micron |
| Blower Type | Centrifugal / Direct-Drive Blower |
| Airflow Pattern | Vertical / Unidirectional Filtered Airflow |
| Pressure Monitoring | Differential Pressure Gauge |
Pass box (Static)
| Specification | Details |
|---|
| Product Name | Static Pass Box |
| Product Type | Passive Material Transfer Chamber |
| Construction | Stainless Steel / Powder-Coated GI |
| Inner Chamber Material | SS 304 / SS 316 |
| Door Type | Double Door |
| Door Interlocking | Mechanical / Electromagnetic |
| Air Filtration System | Not Included |
| Blower System | Not Included |
| Viewing Window | Toughened Glass |
| Door Sealing | Airtight EPDM / Silicone Gasket |
| UV Lamp | Optional |
Treated Fresh Air Unit (TFA)
| Specification | Details |
|---|
| Product Name | Treated Fresh Air Unit |
| Abbreviation | TFA Unit |
| Product Type | Fresh Air Treatment and Ventilation Unit |
| Construction | Pre-painted GI / Aluminium / Stainless Steel |
| Panel Type | Double-skin insulated panels |
| Insulation | PUF / Rockwool insulation |
| Fan Type | Centrifugal Fan / Plug Fan / EC Fan |
| Filter Options | Pre-filter, Fine Filter and HEPA Filter |
| Cooling Medium | Chilled Water / DX Cooling |
| Heating Option | Electric / Hot Water / Steam Coil |
Ventilation Systems
| Specification | Details |
|---|
| Product Name | Ventilation System |
| System Type | Supply, Exhaust or Balanced Ventilation |
| Operation | Natural / Mechanical |
| Fan Type | Axial, Centrifugal or Inline Fan |
| Duct Material | GI / Aluminium / Stainless Steel |
| Airflow Capacity | Customised as per requirement |
| Filter Options | Pre-filter / Fine Filter / HEPA Filter |
| Damper Type | Manual / Motorised Volume Control Damper |
| Control System | Manual / Automatic / BMS Compatible |
| Installation | Indoor / Outdoor |
